Trangie

OVERVIEW

  • Trangie is a large alkalic porphyry-related copper-gold style target which the Company has tested with a series of shallow-penetrating bedrock core holes.
  • Drilling has returned widespread, favourable potassic-style alteration, manifested by biotite-magnetite which is indicative of proximity to an intrusion-related system over several kilometres that the Company considers typical of an alkalic porphyry environment.
Anglogold Phase2 2025nov Trangie 1024x731

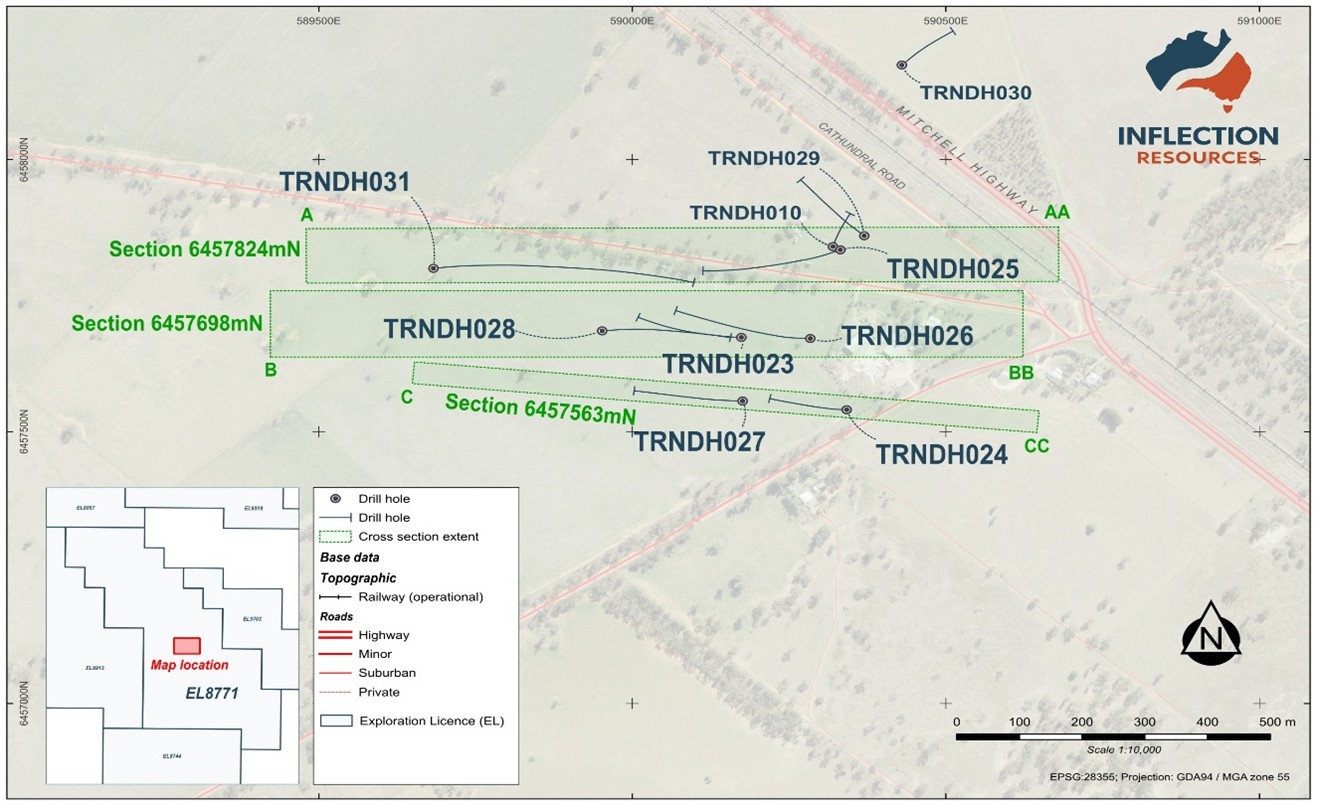

Figure 2 Trangie Project Drill Hole Location Map With Location Of Geological Cross Sections 2
Trangie project drill hole location map (Airborne magnetic RTP-1VD) which shows location of geological cross section in next image.
Figure5 Trangieproject Enhanced V3

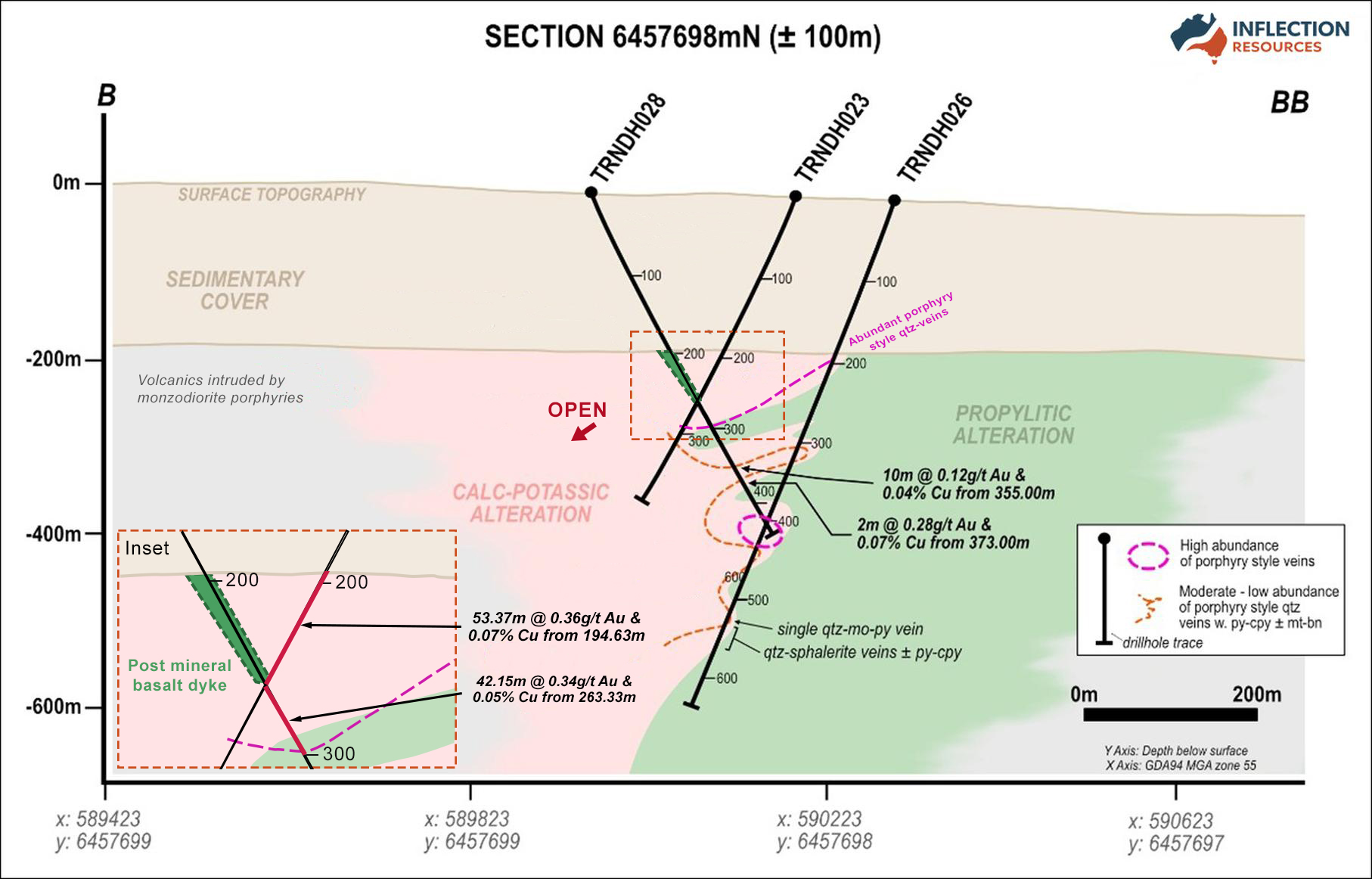

Trangie project interpretive geological E-W cross section 6457698mN (looking N ± 100m) which displays gold and copper geochemical values, porphyry-related alteration zones and porphyry-style veins.

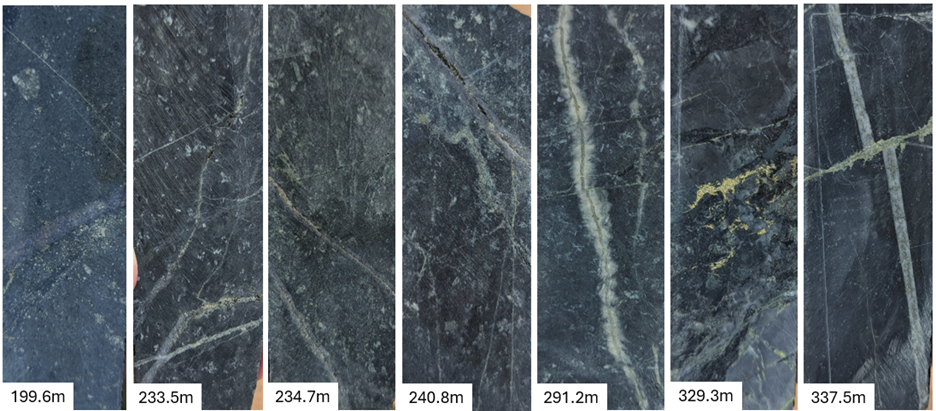

Select photos of hole TRNDH023 drill core. Pyrite-chalcopyrite bearing quartz veinlets and wispy magnetite veins in biotite-actinolite altered andesitic volcanics.

Hole TRNDH023 intersected a significant zone of pyrite-chalcopyrite-bearing quartz veinlets and wispy magnetite veins in biotite-actinolite-altered andesites and volcaniclastic sediments, typical of a calc-potassic porphyry-proximal alteration zone.  The hole reported the following assay results:

  • 37m at 0.36 g/t Au and 0.07% Cu from 194.63m
    • including 17.24m at 0.45 g/t Au and 0.09% Cu from 194.63m
    • including 8.00m at 0.67 g/t Au and 0.11% Cu from 200.00m
    • including 2.00m at 1.28 g/t Au and 0.12% Cu from 200.00m
    • including 34.04m at 0.39 g/t Au and 0.07% Cu from 214.96m
    • including 7.52m at 0.67 g/t Au and 0.10% Cu from 238.48m
  • 47m at 0.40 g/t Au and 0.06% Cu from 259.53m
    • including 25.47m at 0.46 g/t Au and 0.06% Cu from 259.53m
    • including 6.00m at 0.53 g/t Au and 0.06% Cu from 259.53m
  • 45m at 0.22 g/t Au and 0.04% Cu from 346.00m
    • including 12.00m at 0.34 g/t Au and 0.04% Cu from 346.00m
